| 作用：导向环 | 品牌：ALL | 性质：耐高压 |
| 材质：四氟 | 适用范围：阀门 | 使用压力：50MPa |
| 使用温度(℃)：-55~260 | 内径(mm)：320 | 厚度(mm)：2.5 |
| 型号：BP | 外径(mm)：332.2 | 截面形状：c |
| 是否标准件：标准件 | 是否进口：是 | 样品或现货：样品 |

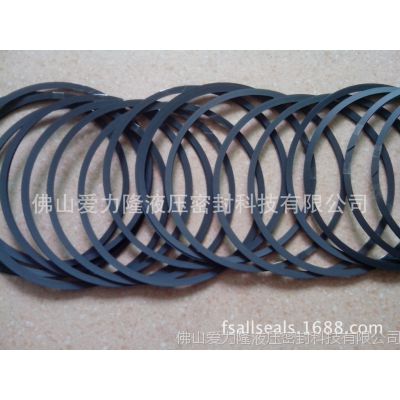

BP螺旋挡圈，JISB2047挡圈，T1螺旋式挡圈，螺旋挡圈，BP挡圈，精密挡圈
- 矩形截面
- 材料: PTFE
- 30?和45?切割角度
- 标准形式由2个螺旋圈组成，在两端成角度切断
- 静态和动态使用
- 仅往复运动
- 安装在未切割的挡圈不适用的封闭式沟槽中
- 由于像螺旋般伸长和收缩，温度变化大时的补偿和
公差间隙补偿没有困难。便于安装在封闭式沟槽中，
用于外部密封用途
- 尺寸与标准挡圈不同
活塞杆o .槽o .槽.度 半径 .圈尺寸 件号 O-形圈件号 O-形圈尺寸
dN f7 d4 H9 L2+0.2 L3+0.2 r±0.2 ID x W x T d1 x d2
4 6.5 3 4 0.25 4.0 x 1.25 x 0.50 BP12H00040 OR1500400 4.00 x 1.50
4 6.9 3.8 5.2 0.25 4.0 x 1.45 x 0.70 BP14H00040 ORAR00007 3.68 x 1.78
5 7.5 3 4 0.25 5.0 x 1.25 x 0.50 BP12H00050 OR1500500 5.00 x 1.50
5 7.9 3.8 5.2 0.25 5.0 x 1.45 x 0.70 BP14H00050 ORAR00008 4.47 x 1.78
6 8.5 3 4 0.25 6.0 x 1.25 x 0.50 BP12H00060 OR1500600 6.00 x 1.50
6 8.9 3.8 5.2 0.25 6.0 x 1.45 x 0.70 BP14H00060 ORAR00010 6.07 x 1.78
8 10.9 3.8 5.2 0.25 8.0 x 1.45 x 0.70 BP14H00080 ORAR00011 7.65 x 1.78
8 11.3 4.1 5.5 0.25 8.0 x 1.65 x 0.70 BP16H00080 OR2000800 8.00 x 2.00
10 12.9 3.8 5.2 0.25 10.0 x 1.45 x 0.70 BP14H00100 ORAR00013 10.82 x 1.78
10 13.3 4.1 5.5 0.25 10.0 x 1.65 x 0.70 BP16H00100 OR2001000 10.00 x 2.00
12 14.9 3.8 5.2 0.25 12.0 x 1.45 x 0.70 BP14H00120 ORAR00014 12.42 x 1.78
12 15.3 4.1 5.5 0.25 12.0 x 1.65 x 0.70 BP16H00120 OR2001200 12.00 x 2.00
14 16.9 3.8 5.2 0.25 14.0 x 1.45 x 0.70 BP14H00140 ORAR00015 14.00 x 1.78
14 17.3 4.1 5.5 0.25 14.0 x 1.65 x 0.70 BP16H00140 OR2001400 14.00 x 2.00
15 17.9 3.8 5.2 0.25 15.0 x 1.45 x 0.70 BP14H00150 ORAR00016 15.60 x 1.78
15 18.3 4.1 5.5 0.25 15.0 x 1.65 x 0.70 BP16H00150 OR2001500 15.00 x 2.00
16 18.9 3.8 5.2 0.25 16.0 x 1.45 x 0.70 BP14H00160 ORAR00016 15.60 x 1.78
16 19.3 4.1 5.5 0.25 16.0 x 1.65 x 0.70 BP16H00160 OR2001600 16.00 x 2.00
18 20.9 3.8 5.2 0.25 18.0 x 1.45 x 0.70 BP14H00180 ORAR00018 18.77 x 1.78
18 21.3 4.1 5.5 0.25 18.0 x 1.65 x 0.70 BP16H00180 OR2001800 18.00 x 2.00
20 22.9 3.8 5.2 0.25 20.0 x 1.45 x 0.70 BP14H00200 ORAR00019 20.35 x 1.78
20 23.3 4.1 5.5 0.25 20.0 x 1.65 x 0.70 BP16H00200 OR2002000 20.00 x 2.00
22 26.5 5 6.4 0.25 22.0 x 2.25 x 0.70 BP22H00220 ORAR00118 21.89 x 2.62
22 27.2 5.4 6.8 0.25 22.0 x 2.60 x 0.70 BP2600220 OR3002200 22.00 x 3.00
25 29.5 5 6.4 0.25 25.0 x 2.25 x 0.70 BP22H00250 ORAR00120 25.07 x 2.62
25 30.2 5.4 6.8 0.25 25.0 x 2.60 x 0.70 BP2600250 OR3002500 25.00 x 3.00
28 32.5 5 6.4 0.25 28.0 x 2.25 x 0.70 BP22H00280 ORAR00122 28.24 x 2.62
28 33.2 5.4 6.8 0.25 28.0 x 2.60 x 0.70 BP2660280 OR3002800 28.00 x 3.00
30 34.5 5 6.4 0.25 30.0 x 2.25 x 0.70 BP22H00300 ORAR00123 29.83 x 2.62
30 35.2 5.4 6.8 0.25 30.0 x 2.60 x 0.70 BP2600300 OR3003000 30.00 x 3.00
32 36.5 5 6.4 0.25 32.0 x 2.25 x 0.70 BP22H00320 ORAR00125 31.42 x 2.62
32 37.2 5.4 6.8 0.25 32.0 x 2.60 x 0.70 BP2600320 OR3003200 32.00 x 3.00
35 39.5 5 6.4 0.25 35.0 x 2.25 x 0.70 BP22H00350 ORAR00126 24.59 x 2.62
35 40.2 5.4 6.8 0.25 35.0 x 2.60 x 0.70 BP2600350 OR3003500 35.00 x 3.00
36 40.5 5 6.4 0.25 36.0 x 2.25 x 0.70 BP22H00360 ORAR00127 36.17 x 2.62
36 41.2 5.4 6.8 0.25 36.0 x 2.60 x 0.70 BP2600360 OR3003600 36.00 x 3.00
活塞杆o .槽o .槽.度 半径 .圈尺寸 件号 O-形圈件号 O-形圈尺寸
dN f7 d4 H9 L2+0.2 L3+0.2 r±0.2 ID x W x T d1 x d2
40 46.2 6.2 7.6 0.25 40.0 x 3.10 x 0.70 BP31D0400 ORAR00223 40.87 x 3.53
40 47 6.9 8.6 0.25 40.0 x 3.50 x 0.85 BP3500400 OR4004000 40.00 x 4.00
42 48.2 6.2 7.6 0.25 42.0 x 3.10 x 0.70 BP31D0420 ORAR00223 40.87 x 3.53
42 49 6.9 8.6 0.25 42.0 x 3.50 x 0.70 BP35D0420 OR4004200 42.00 x 2.00
45 51.2 6.2 7.6 0.25 45.0 x 3.10 x 0.70 BP31D0450 ORAR00224 44.04 x 3.53
45 52 6.9 8.6 0.25 45.0 x 3.50 x 0.85 BP3500450 OR4004500 45.00 x 4.00
48 54.2 6.2 7.6 0.25 48.0 x 3.10 x 0.70 BP31D0480 ORAR00225 47.22 x 3.53
48 55 6.9 8.6 0.25 48.0 x 3.50 x 0.85 BP3500480 OR4004800 48.00 x 4.00
50 56.2 6.2 7.6 0.25 50.0 x 3.10 x 0.70 BP31D0500 ORAR00226 50.39 x 3.53
50 57 6.9 8.6 0.25 50.0 x 3.50 x 0.85 BP3500500 OR4005000 50.00 x 4.00
52 58.2 6.2 7.6 0.25 52.0 x 3.10 x 0.70 BP31D0520 ORAR00226 50.39 x 3.53
52 59 6.9 8.6 0.25 52.0 x 3.50 x 0.85 BP3500520 OR4005200 52.00 x 4.00
55 61.2 6.2 7.6 0.25 55.0 x 3.10 x 0.70 BP31D0550 ORAR00227 53.57 x 3.53
55 62 6.9 8.6 0.25 55.0 x 3.50 x 0.85 BP3500550 OR4005500 55.00 x 4.00
56 62.2 6.2 7.6 0.25 56.0 x 3.10 x 0.70 BP31D0560 ORAR00228 56.74 x 3.53
56 63 6.9 8.6 0.25 56.0 x 3.50 x 0.85 BP3500560 OR4005600 56.00 x 4.00
60 66.2 6.2 7.6 0.25 60.0 x 3.10 x 0.70 BP31D0600 ORAR00229 59.92 x 3.53
60 97 6.9 8.6 0.25 60.0 x 3.50 x 0.85 BP3500600 OR4006000 60.00 x 4.00
63 69.2 6.2 7.6 0.25 63.0 x 3.10 x 0.70 BP31D0630 ORAR00230 63.09 x 3.53
63 70 6.9 8.6 0.25 63.0 x 3.50 x 0.85 BP3500630 OR4006300 63.00 x 4.00
65 71.2 6.2 7.6 0.25 65.0 x 3.10 x 0.70 BP31D0650 ORAR00231 66.27 x 3.53
65 72 6.9 8.6 0.25 65.0 x 3.50 x 0.85 BP3500650 OR4006500 65.00 x 4.00
70 76.2 6.2 7.6 0.25 70.0 x 3.10 x 0.70 BP31D0700 ORAR00232 69.44 x 3.53
70 77 6.9 8.6 0.25 70.0 x 3.50 x 0.85 BP3500700 OR4007000 70.00 x 4.00
75 81.2 6.2 7.6 0.25 75.0 x 3.10 x 0.70 BP31D0750 ORAR00234 75.79 x 3.53
75 82 6.9 8.6 0.25 75.0 x 3.50 x 0.85 BP3500750 OR4007500 75.00 x 4.00
80 88.8 8.3 10 0.25 80.0 x 4.40 x 0.85 BP4400800 OR5008000 80.00 x 5.00
80 89.4 9 10.9 0.25 80.0 x 4.70 x 0.85 BP4700800 ORAR00339 81.92 x 5.33
85 93.8 8.3 10 0.25 85.0 x 4.40 x 0.85 BP4400850 OR5008500 85.00 x 5.00
85 94.4 9 10.9 0.25 85.0 x 4.70 x 0.85 BP4700850 ORAR00340 85.09 x 5.33
90 98.8 8.3 10 0.25 90.0 x 4.40 x 0.85 BP4400900 OR5009000 90.00 x 5.00
90 99.4 9 10.9 0.25 90.0 x 4.70 x 0.85 BP4700900 ORAR00342 91.44 x 5.33
95 103.8 8.3 10 0.25 95.0 x 4.40 x 0.85 BP4400950 OR5009500 95.00 x 5.00
95 104.4 9 10.9 0.25 95.0 x 4.70 x 0.85 BP4700950 ORAR00343 94.62 x 5.33
100 108.8 8.3 10 0.25 100.0 x 4.40 x 0.85 BP4401000 OR5010000 100.00 x 5.00
100 109.4 9 10.9 0.25 100.0 x 4.70 x 0.85 BP4701000 ORAR00345 100.97 x 5.33
活塞杆o .槽o .槽.度 半径 .圈尺寸 件号 O-形圈件号 O-形圈尺寸
dN f7 d4 H9 L2+0.2 L3+0.2 r±0.2 ID x W x T d1 x d2
105 113.8 8.3 10 0.25 105.0 x 4.40 x 0.85 BP4401050 OR5010500 105.00 x 5.00
105 114.4 9 10.9 0.25 105.0 x 4.70 x 0.85 BP4701050 ORAR00346 104.14 x 5.33
110 118.8 8.3 10 0.25 110.0 x 4.40 x 0.85 BP4401100 OR5011000 110.00 x 5.00
110 119.4 9 10.9 0.25 110.0 x 4.70 x 0.85 BP4701100 ORAR00348 110.49 x 5.33
115 123.8 8.3 10 0.25 115.0 x 4.40 x 0.85 BP4401150 OR5011500 115.00 x 5.00
115 124.4 9 10.9 0.25 115.0 x 4.70 x 0.85 BP4701150 ORAR00349 113.67 x 5.33
120 128.8 8.3 10 0.25 120.0 x 4.40 x 0.85 BP4401200 OR5012000 120.00 x 5.00
120 129.4 9 10.9 0.25 120.0 x 4.70 x 0.85 BP4701200 ORAR00351 120.02 x 5.33
125 133.8 8.3 10 0.25 125.0 x 4.40 x 0.85 BP4401250 OR5012500 125.00 x 5.00
125 134.4 9 10.9 0.25 125.0 x 4.70 x 0.85 BP4701250 ORAR00353 126.37 x 5.33
130 138.8 8.3 10 0.25 130.0 x 4.40 x 0.85 BP4401300 OR5013000 130.00 x 5.00
130 139.4 9 10.9 0.25 130.0 x 4.70 x 0.85 BP4701300 ORAR00354 129.54 x 5.33
135 147.2 12.3 15.1 0.25 135.0 x 6.10 x 1.25 BP6101350 ORAR00432 135.89 x 7.00
140 152.2 12.3 15.1 0.25 140.0 x 6.10 x 1.25 BP6101400 ORAR00433 139.07 x 7.00
150 162.2 12.3 15.1 0.25 150.0 x 6.10 x 1.25 BP6101500 ORAR00437 151.77 x 7.00
160 172.2 12.3 15.1 0.25 160.0 x 6.10 x 1.25 BP6101600 ORAR00438 158.12 x 7.00
170 182.2 12.3 15.1 0.25 170.0 x 6.10 x 1.25 BP6101700 ORAR00440 170.82 x 7.00
180 192.2 12.3 15.1 0.25 180.0 x 6.10 x 1.25 BP6101800 ORAR00442 183.52 x 7.00
190 202.2 12.3 15.1 0.25 190.0 x 6.10 x 1.25 BP6101900 ORAR00443 189.87 x 7.00
200 212.2 12.3 15.1 0.25 200.0 x 6.10 x 1.25 BP6102000 ORAR00445 202.57 x 7.00
210 222.2 12.3 15.1 0.25 210.0 x 6.10 x 1.25 BP6102100 ORAR00446 215.27 x 7.00
220 232.2 12.3 15.1 0.25 220.0 x 6.10 x 1.25 BP6102200 ORAR00446 215.27 x 7.00
230 242.2 12.3 15.1 0.25 230.0 x 6.10 x 1.25 BP6102300 ORAR00447 227.97 x 7.00
240 252.2 12.3 15.1 0.25 240.0 x 6.10 x 1.25 BP6102400 ORAR00448 240.67 x 7.00
250 262.2 12.3 15.1 0.25 250.0 x 6.10 x 1.25 BP6102500 ORAR00449 253.37 x 7.00
280 292.2 12.3 15.1 0.25 280.0 x 6.10 x 1.25 BP6102800 ORAR00451 278.77 x 7.00
300 312.2 12.3 15.1 0.25 300.0 x 6.10 x 1.25 BP6103000 ORAR00453 304.17 x 7.00
320 332.2 12.3 15.1 0.25 320.0 x 6.10 x 1.25 BP6103200 ORAR00454 316.87 x 7.00
350 362.2 12.3 15.1 0.25 350.0 x 6.10 x 1.25 BP6103500 ORAR00457 354.97 x 7.00
360 372.2 12.3 15.1 0.25 360.0 x 6.10 x 1.25 BP6103600 ORAR00457 354.97 x 7.00
400 412.2 12.3 15.1 0.25 400.0 x 6.10 x 1.25 BP6104000 ORAR00461 405.26 x 7.00
